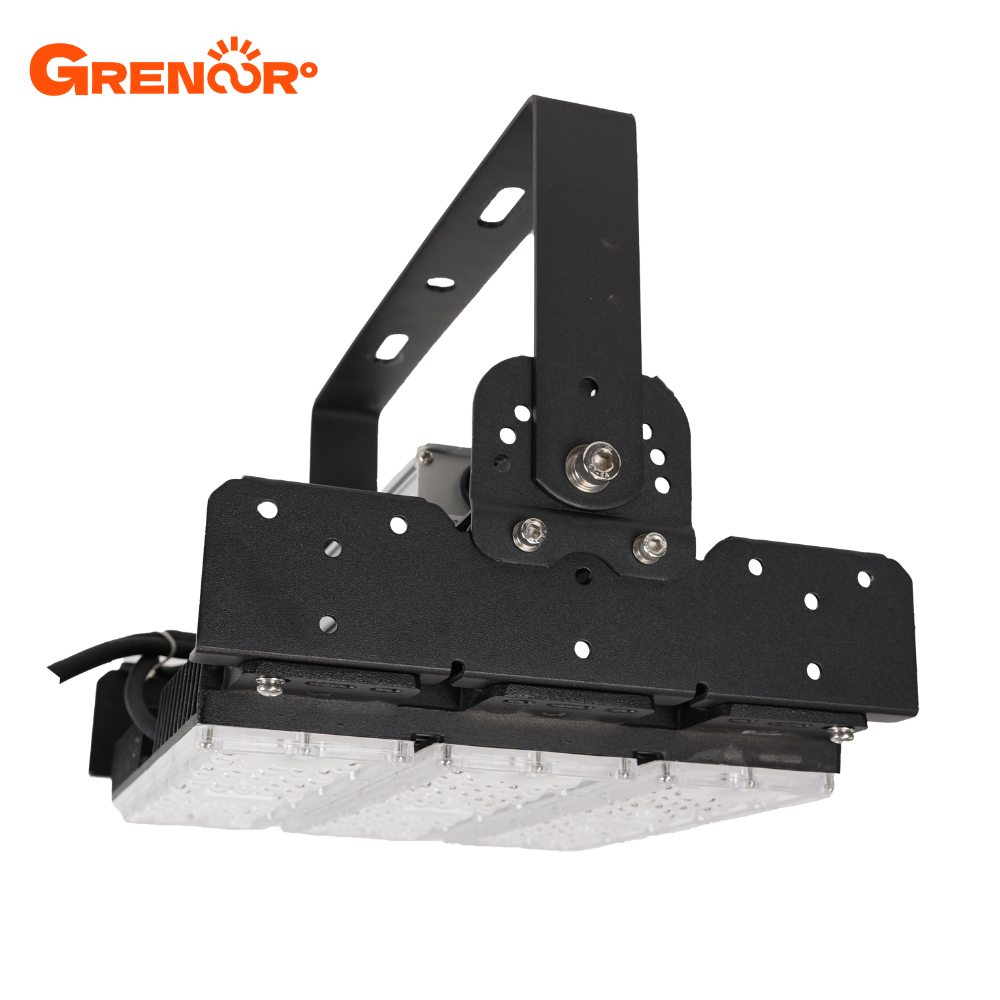

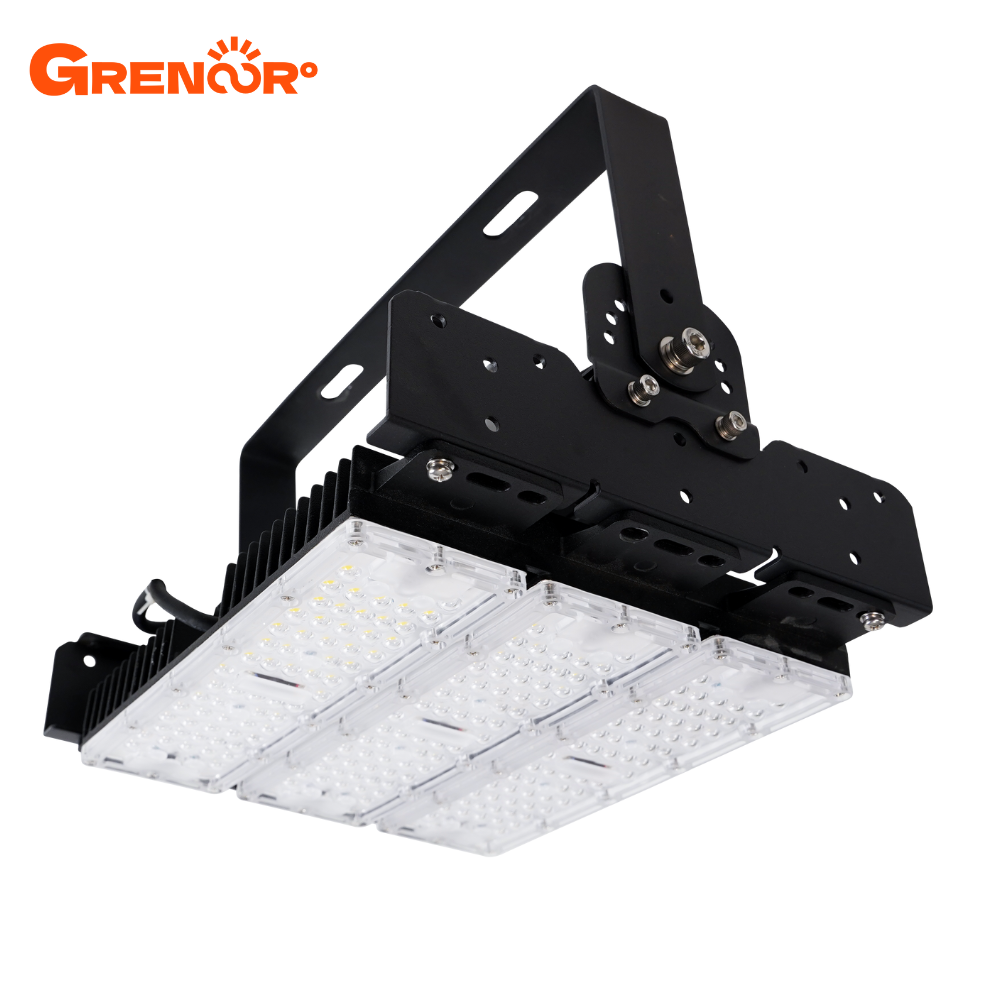

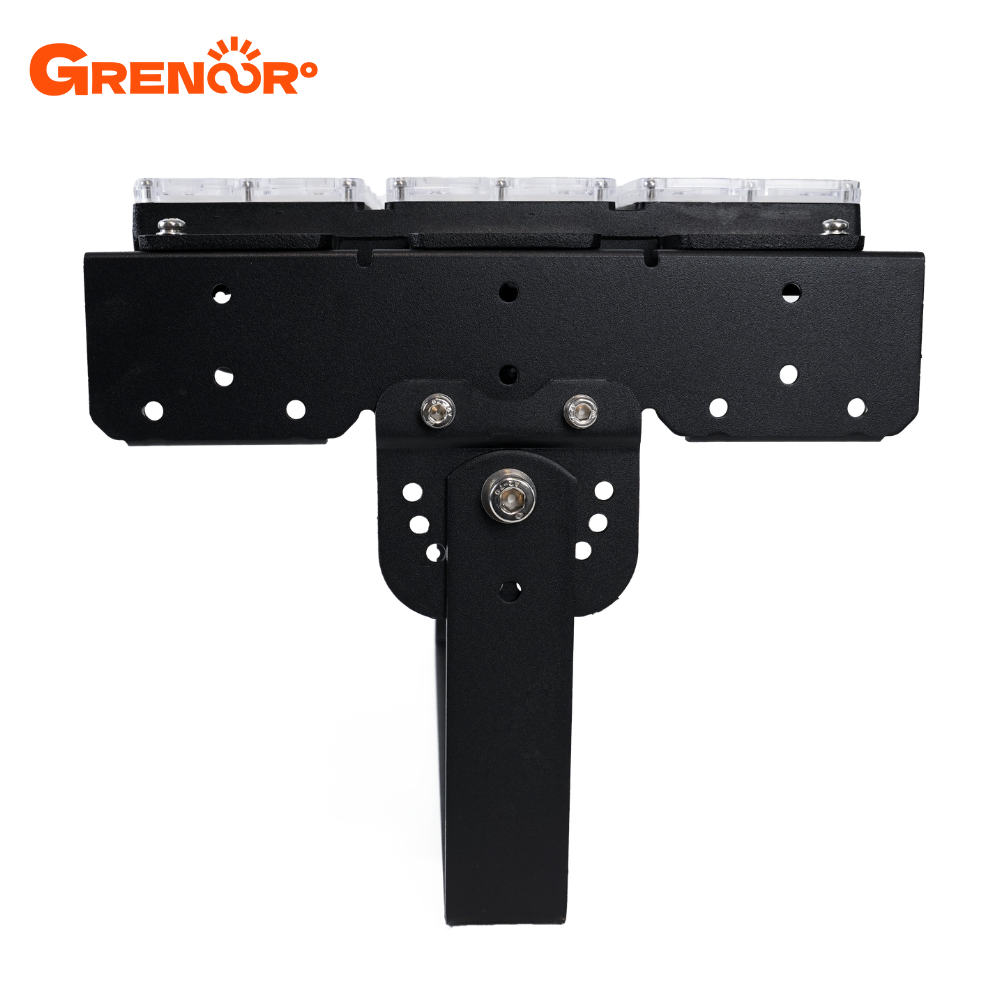

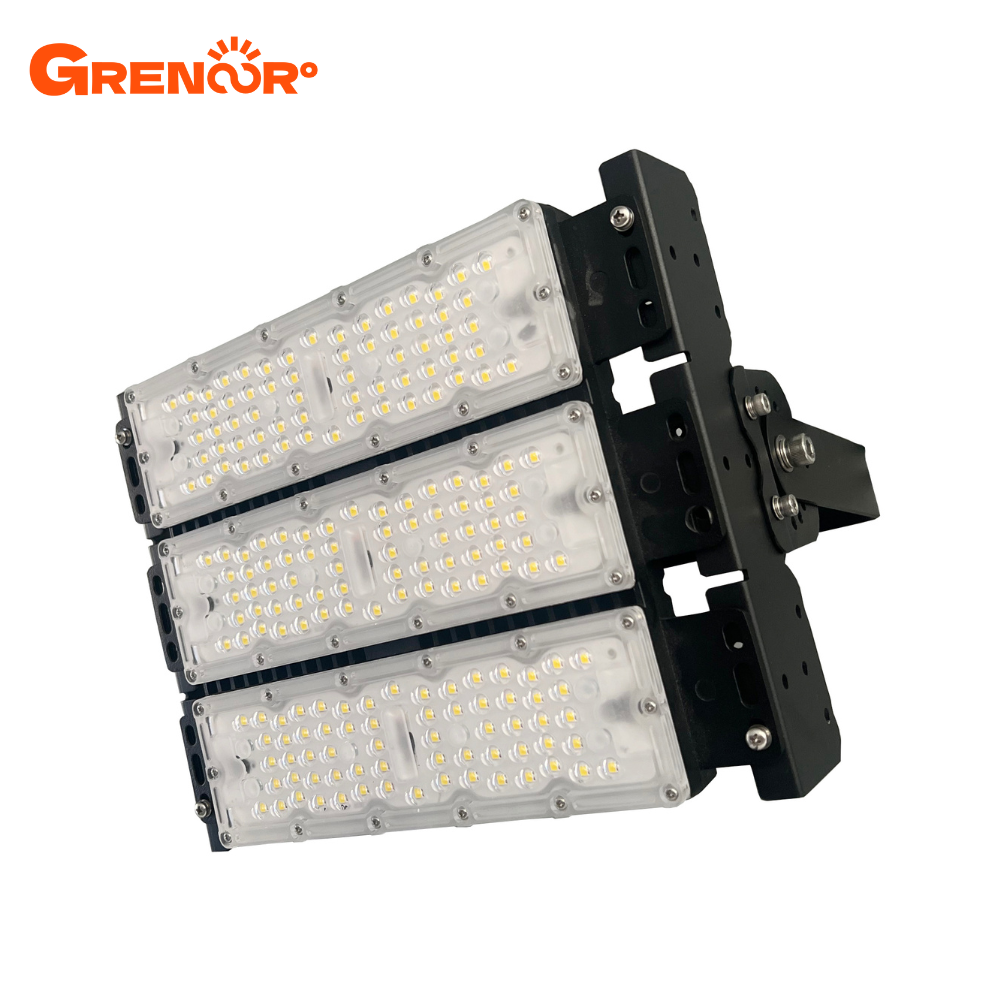

TERRA LED TUNNEL LIGHT
Terra LED Tunnel Light delivers 150 lm/W with IP66 protection and optimized 90°x120° beam for uniform tunnel illumination.
Additional information
| Power | 50W, 100W, 150W |
|---|---|
| Efficiency | 150lm/w |
| Input Voltage | AC200-240V, AC100-277V |
| CCT | 3000K, 4000K, 5000K, 6000K |
| Beam Angle | 90*120° |
| Controls | 0-10V, DALI, Sensor |
| Warranty | 5 years |
Product Details
Designed for the demanding tunnel environment, this Terra LED Tunnel Light offers efficient and reliable illumination. Its die-cast aluminum housing with anti-corrosion coating ensures excellent heat dissipation and longevity, supported by an IP66 rating for total dust and water ingress protection. Achieving a high efficacy of 150 lm/W, it delivers significant energy savings. The modular design simplifies installation and maintenance, while the adjustable mounting bracket allows for precise aiming. Crucially, it features an optimized 90° x 120° asymmetric beam angle, specifically engineered to provide uniform light coverage on tunnel walls and roadways, enhancing safety and visibility.
KEY FEATURES
- IP66 Rating.
- Die-casting Aluminum Housing + PC Lens.
- Modular Design for Easy Installation and Maintenance.
- Excellent Heat Dissipation.
- Rotatable Installation Bracket for Flexible Illuminating Angles.
- Corrosion Coating for Outdoor Use.
- High Efficiency 150lm/w.
- SPD 10KV Voltage Surge Protection.
- Flicker-free Driver, THD<15%.
- L70 Lifespan >100,000 Hours.
- 5 Years Warranty.
- Widely Used in Tunnel, Tower, Bridge, Parking Area, Airport, Harbor, etc.
